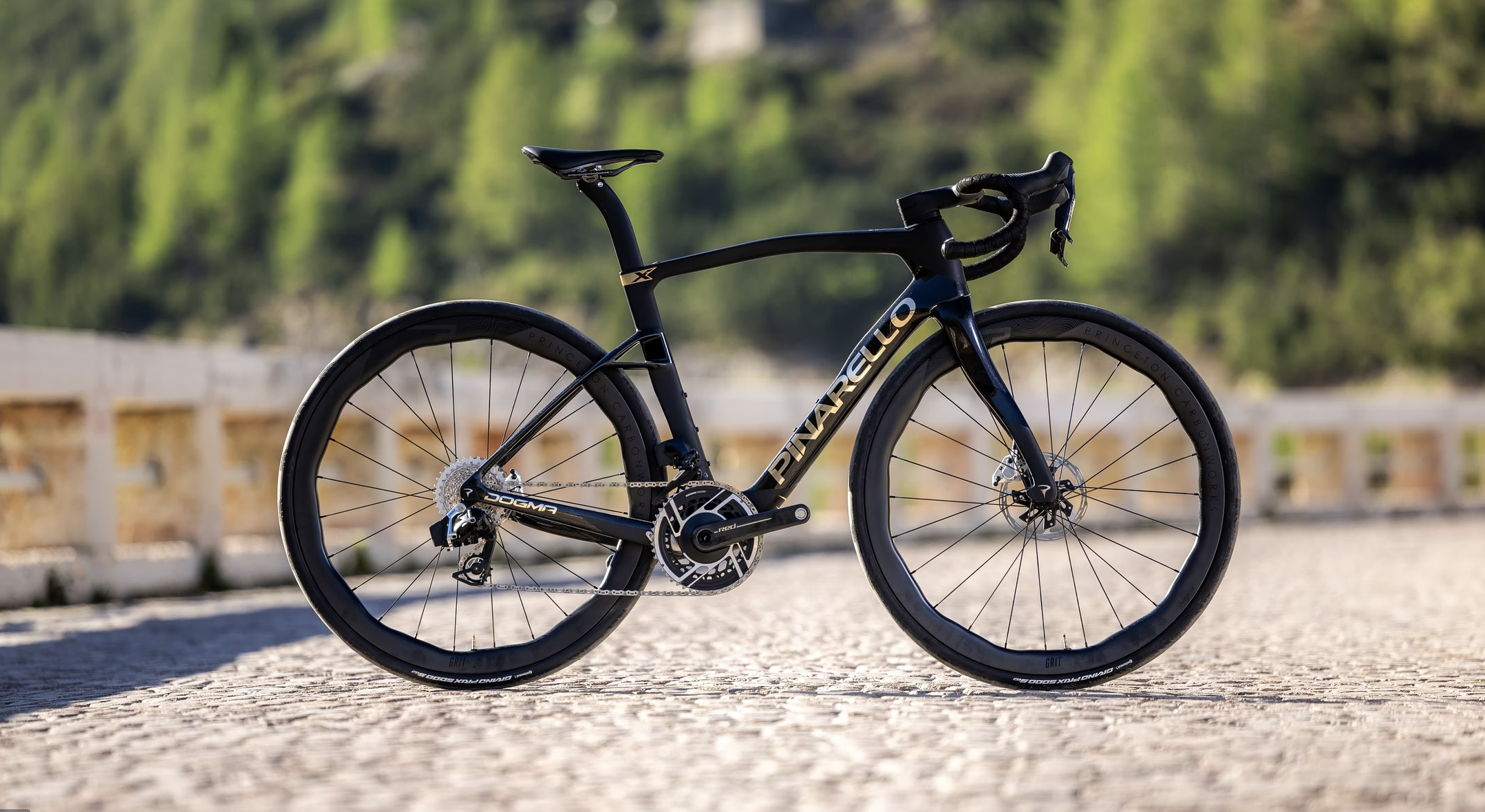

Performance endurance bikes are certainly a focus in 2026. They are no longer the laid-back, hybrid frames with drop bars. These bikes are lighter, stiffer, and now every bit as premium as their super aero brethren – but more comfortable. Now, Pinarello is taking a swing at updating its popular Dogma X series to be a perfect endurance counterpart to the Dogma F series. Meet the all-new Pinarello Dogma X.
The updates to the Dogma X aren’t a “make this stiffer and this more aero” kinda update, though they did a bit of that. The design team combed over the frame in the way only a picky Italian designer could. Looking at the lines, the silhouette, and the very essence of the bike. A bike that will “amplify every emotion,” as Pinarello says.
In this update, the Pinarello design team looked at the Dogma X and questioned: “Who is it for, and what are the rider demands?” Almost every bike could be more comfortable, but will it perform up to the expectations of its audience? The new Dogma X leans further into the performance world while keeping a firm footing in comfort. Blending a design that will be more comfortable (and fit better), allowing the riders’ pure performance to come out.
But enough waxing poetically about the ethos and spirit of the Dogma X; let’s get down to the tech.
Pinarello Dogma X – What’s New?
The quick pitch is that the new Pinarello Dogma X keeps the same core as the previous model but turns up the performance and race ride feel. It’s the same idea as the Canyon CFR Endurace, and other performance endurance bikes we’ve seen this year.
Why are we seeing this push towards “performance endurance”? I see it as a bike option that is slightly adjacent to the World Tour option. To ride a Dogma F, you need to be fairly up to date on your mobility, and pretty limber to get in a very aerodynamic position. Something that World Tour and aspiring professionals work on diligently.
The rest of us might need more spacers, a slightly taller head tube, and a shorter reach. But these riders want the stiffness and pure Italian race ride that comes with a Pinarello. Thats the Dogma X ride (but more on that in our upcoming review).
A New Identity

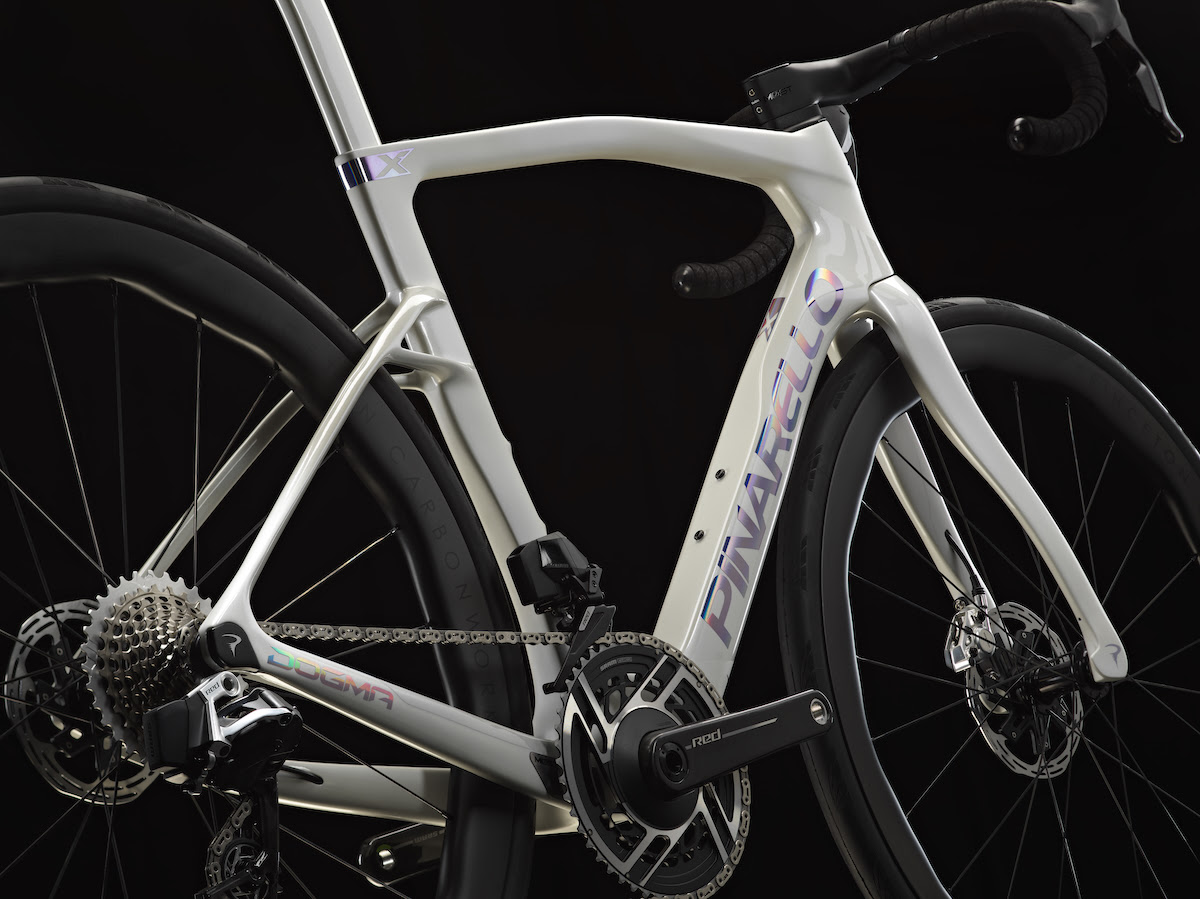

The new Dogma X builds on the first-generation platform, but turns up the stiffness, compliance, and elegance. Gone is the classic “X” from the seatstay; the updated Dogma X is all about progression and saving weight wherever possible.
These new features come via a revised carbon layup, updated X-Stays, cleaner front-end integration, more aero shaping, and tire clearance up to 35mm. For me, 35mm clearance is the sweet spot, and where modern endurance riding is headed, especially when the bike still looks more like a Grand Tour weapon.
Dogma Worthy Carbon Layup

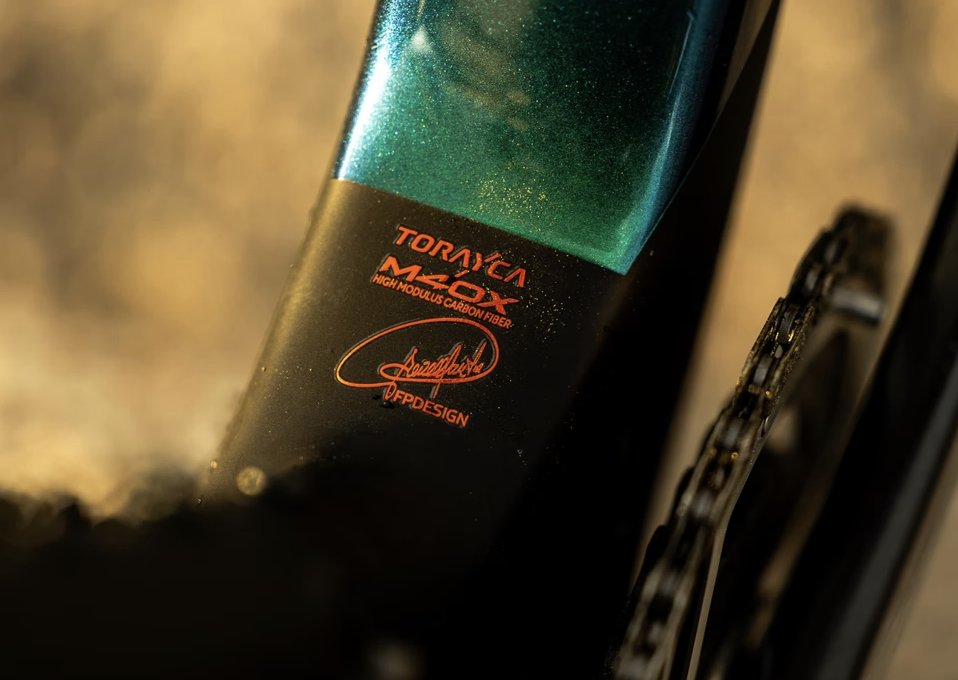

At the heart of the new Dogma X is Toray M40X carbon fiber. Pinarello says this new layup was tested on its X-Light models and pro team bikes, then carried into the latest Dogma F development. It’s light enough to craft a bike for the Tour de France, but can take the beating of a modern everyday rider.
The Toray M40X has a higher tensile modulus than T700, T900, and T1100G carbon, with the listed chart (above). It’s a nice upgrade to the chassis overall, but it’s very hard to discern the details unless you’re highly attuned to the bike’s ride.

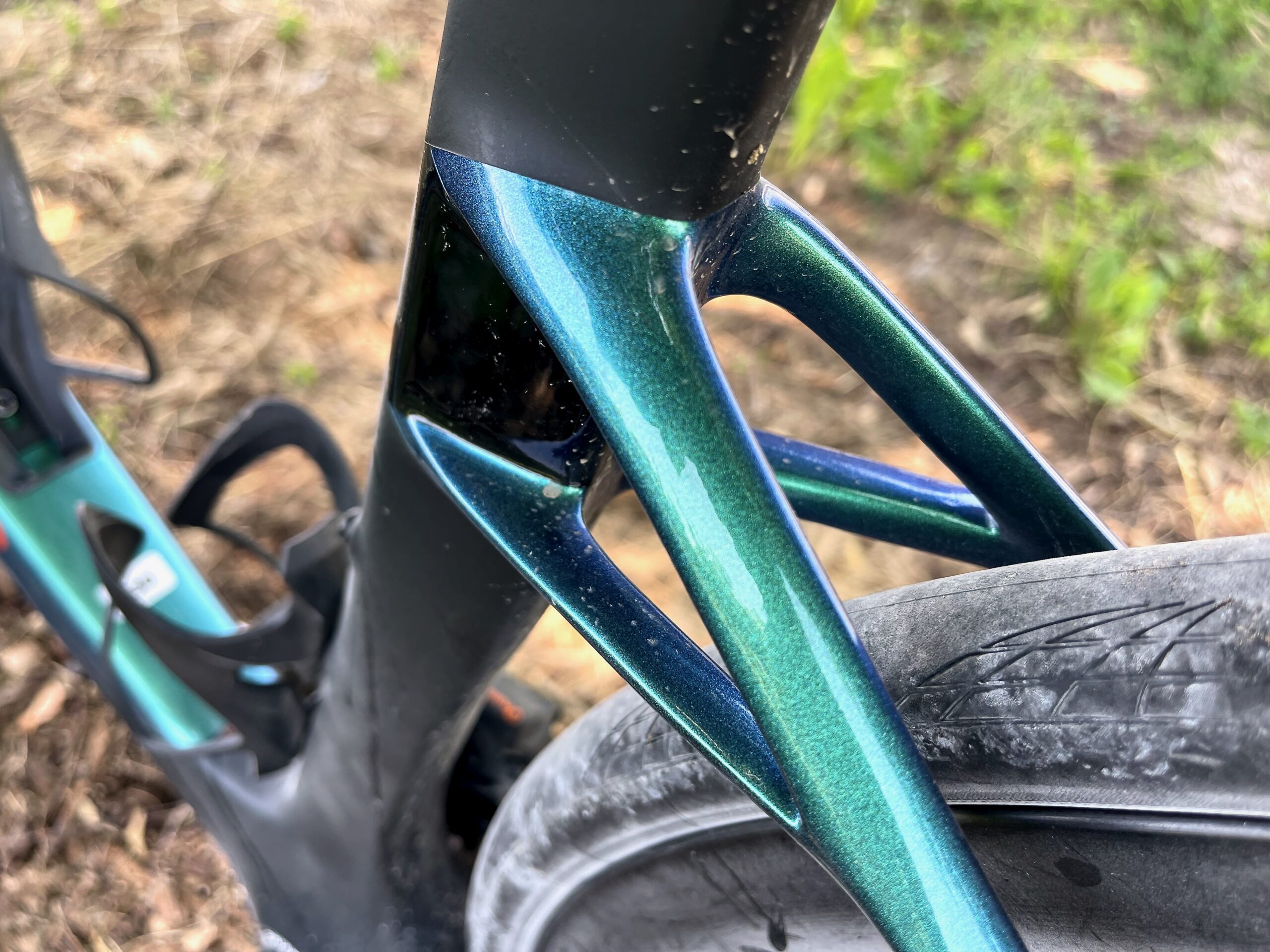

X-Stays Are Here To Stay

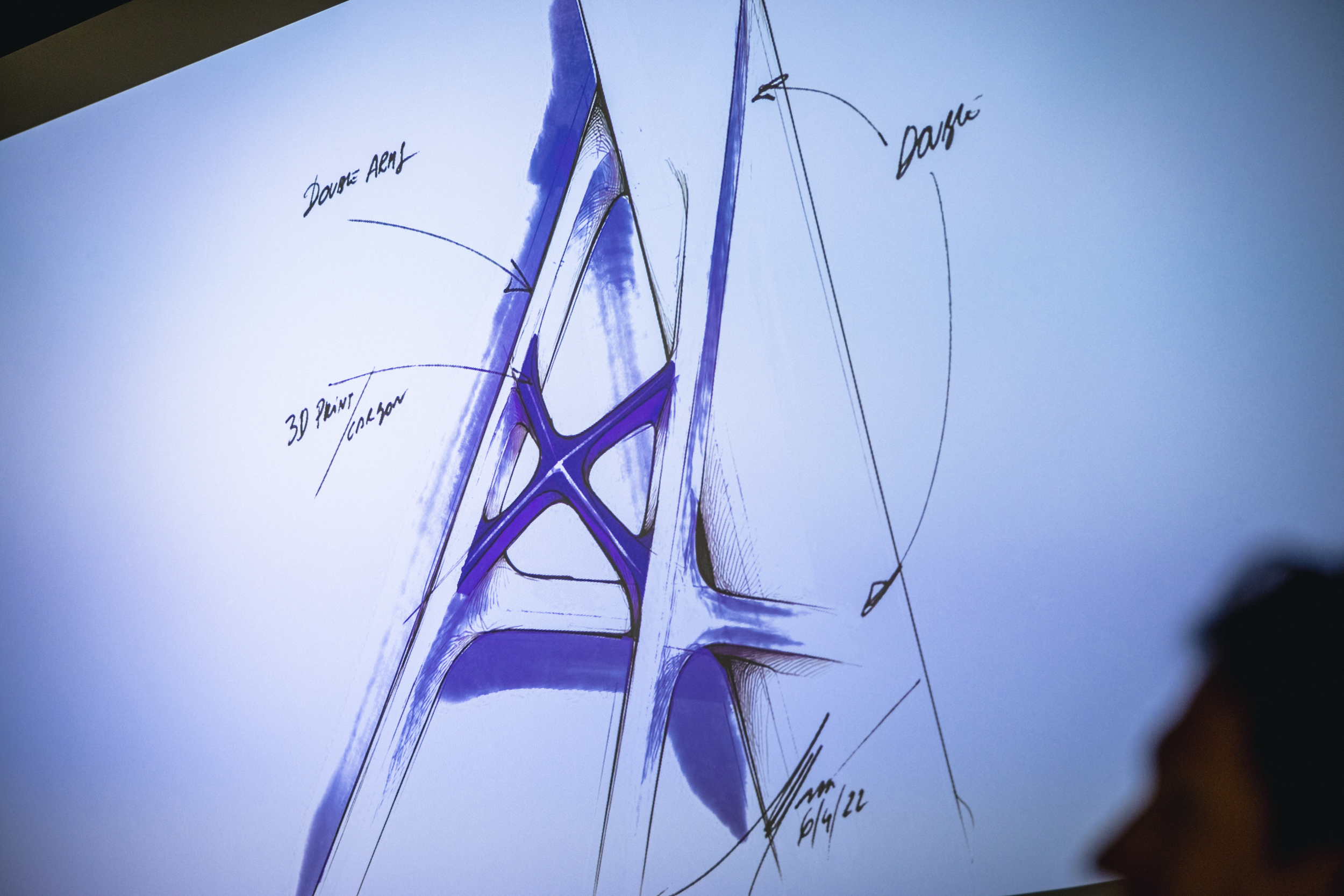

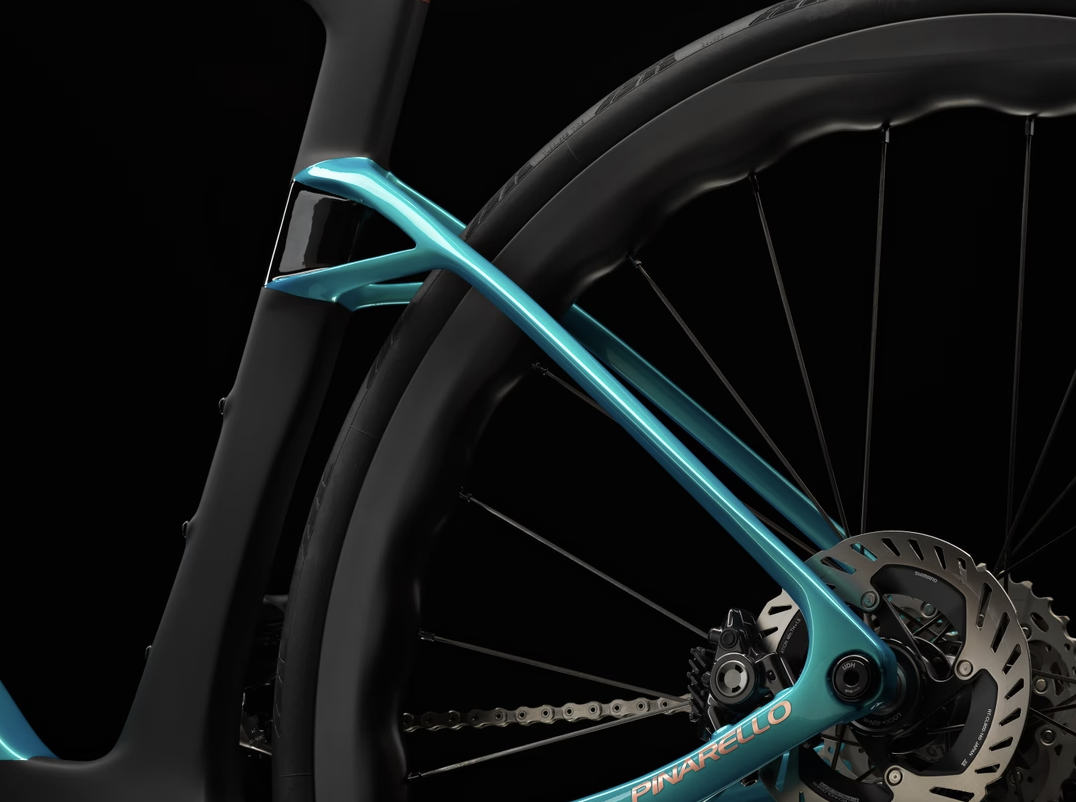

The biggest visual carryover from the original Dogma X is still the X-Stays, but Pinarello has changed the layout for version 2.0. The seatstays still use the brand’s double-arm, four-point top-stay design; however, the lower attachment point and refined geometry are intended to better disperse road vibration through those four connection points.
Pinarello also says the lower linkage helps reduce rebound, which should make the rear of the bike feel calmer over rougher roads. It’s not suspension, and it is not trying to be. It is controlled compliance through carbon shape, stay layout, and tire volume.
Visually, the presentation is seamless, and with the updated paint schemes, the new X stays look elegant. Not like something thats a gimmick and thrown on at the last moment.
Stiffer/Taller Front End
The front end gets a proper update too. The new Dogma X uses an elliptical-shaped steerer tube with integrated front cable routing. Pinarello says the shape reduces overall width while increasing head tube depth, improving aero efficiency and torsional stiffness.

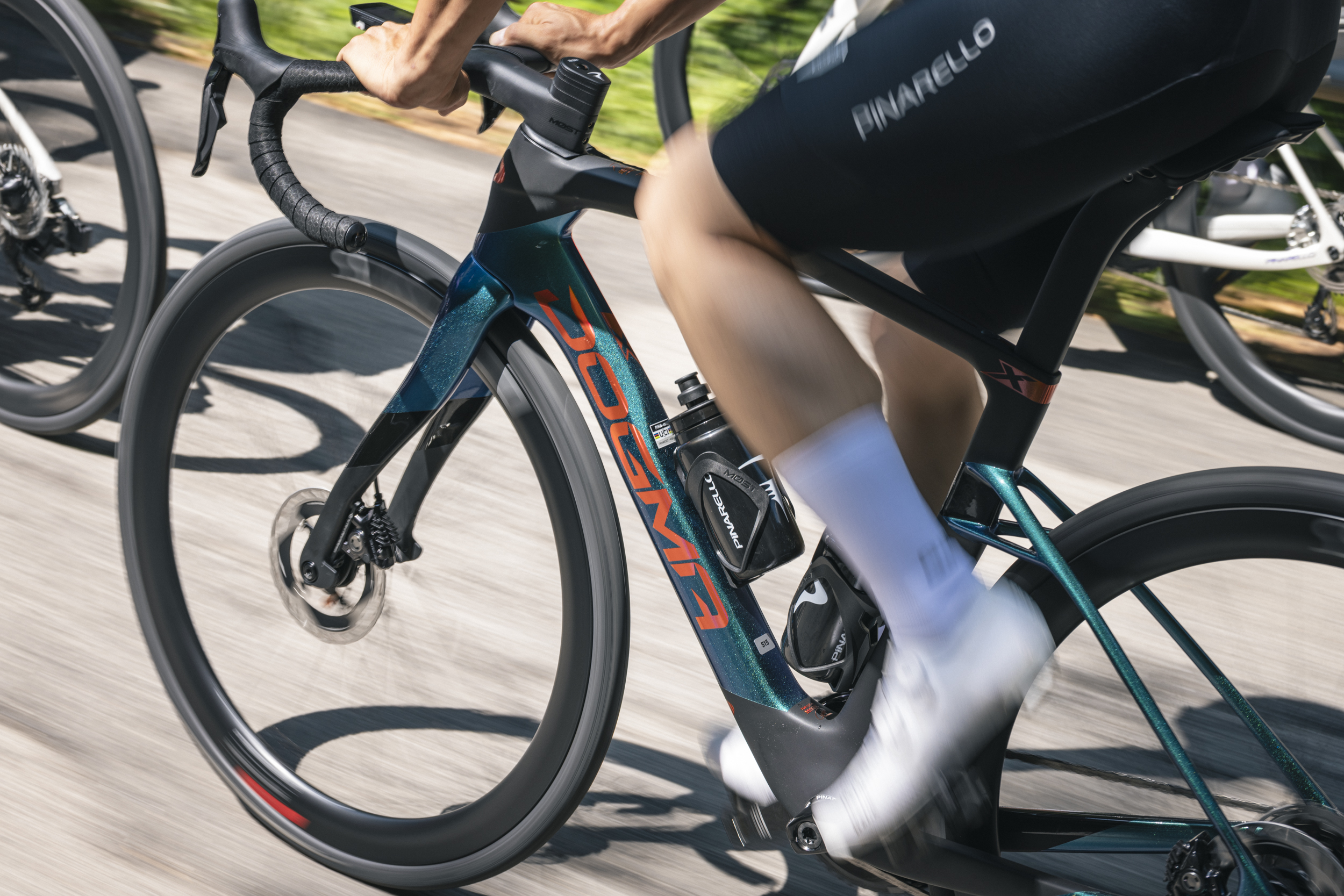

The intended result is sharper handling, better stability, and more confidence on descents. That is the sort of thing you can usually feel right away on a fast endurance bike (and we did). A comfortable rear end is great, but if the front end wanders when you are descending on tired arms, the whole thing falls apart.

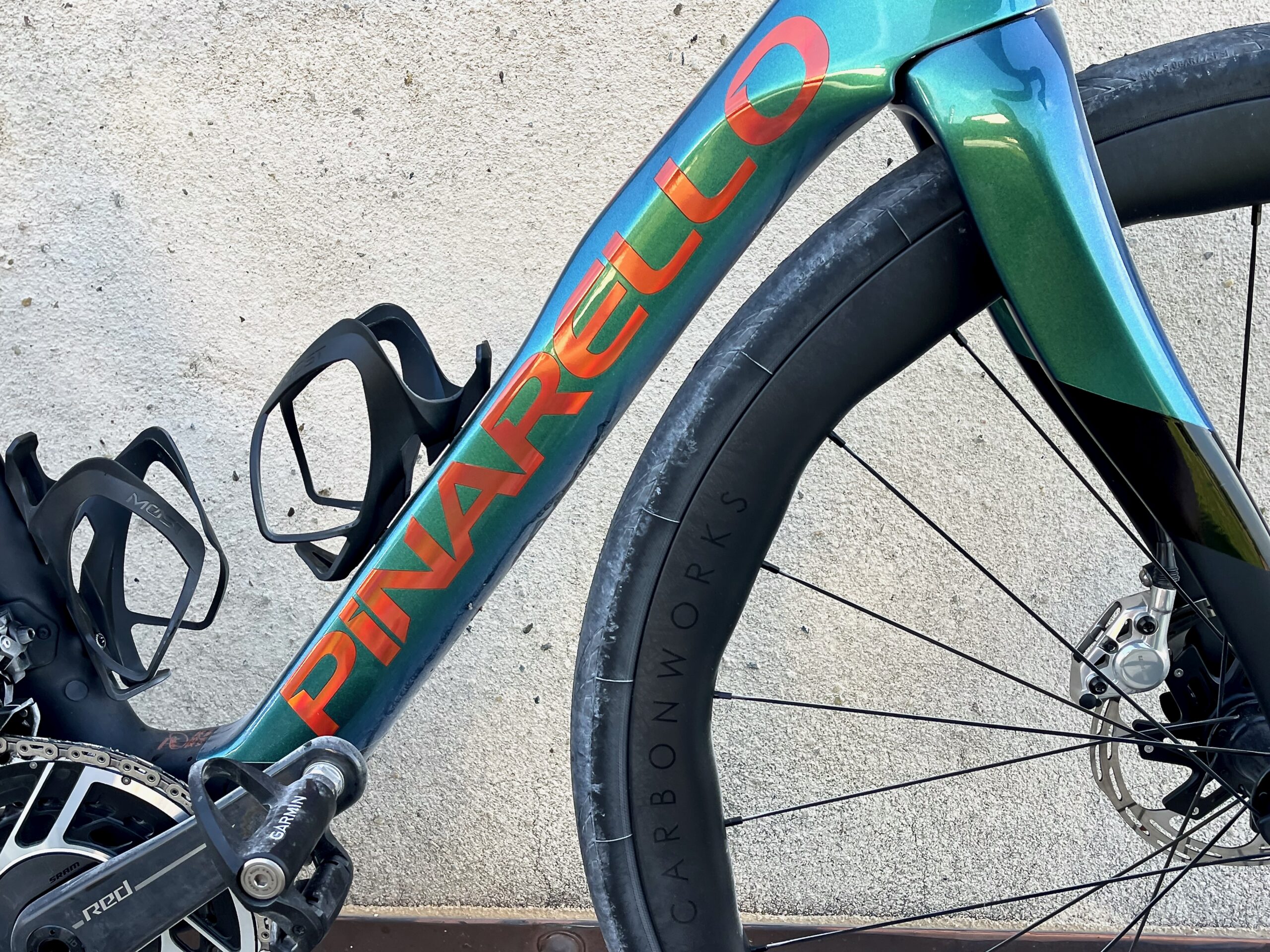

Aero Down Tube

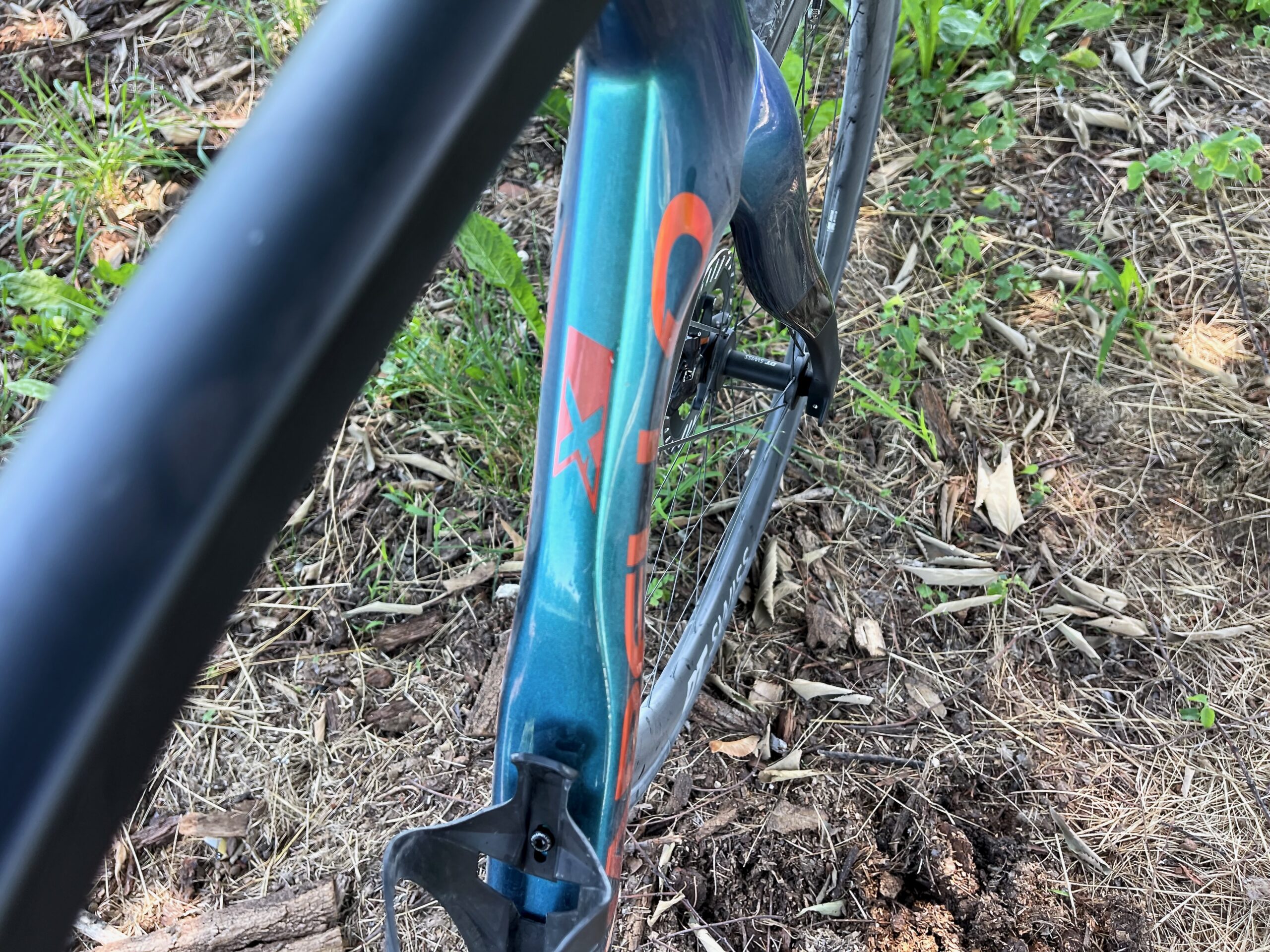

The downtube also gets the aero treatment. It is now narrower and tapered, which Pinarello says improves aerodynamic performance and increases lateral stiffness.
That should give the bike a little more snap under load while trimming drag on faster roads. Again, this is where the Dogma X separates itself from a generic endurance bike. Pinarello is not just adding stack height and calling it a day. The bike is still chasing speed.
More About Tire Clearance
As we mentioned above, tire clearance jumps to 35mm, which is one of the more useful updates on the new bike. That gives riders room for modern tubeless road tires, wider endurance tires, or fast slicks for rough pavement without pushing the Dogma X into gravel-bike territory. This opens the Dogma X up enough to ride gravel, chip-and-seal, and all the wandering roads your heart desires.
Why not larger? Well – they have another bike for that. But as for performance endurance, 35mm (with the proper 5mm around for debris) is pretty solid imo.
Other Notable Specs

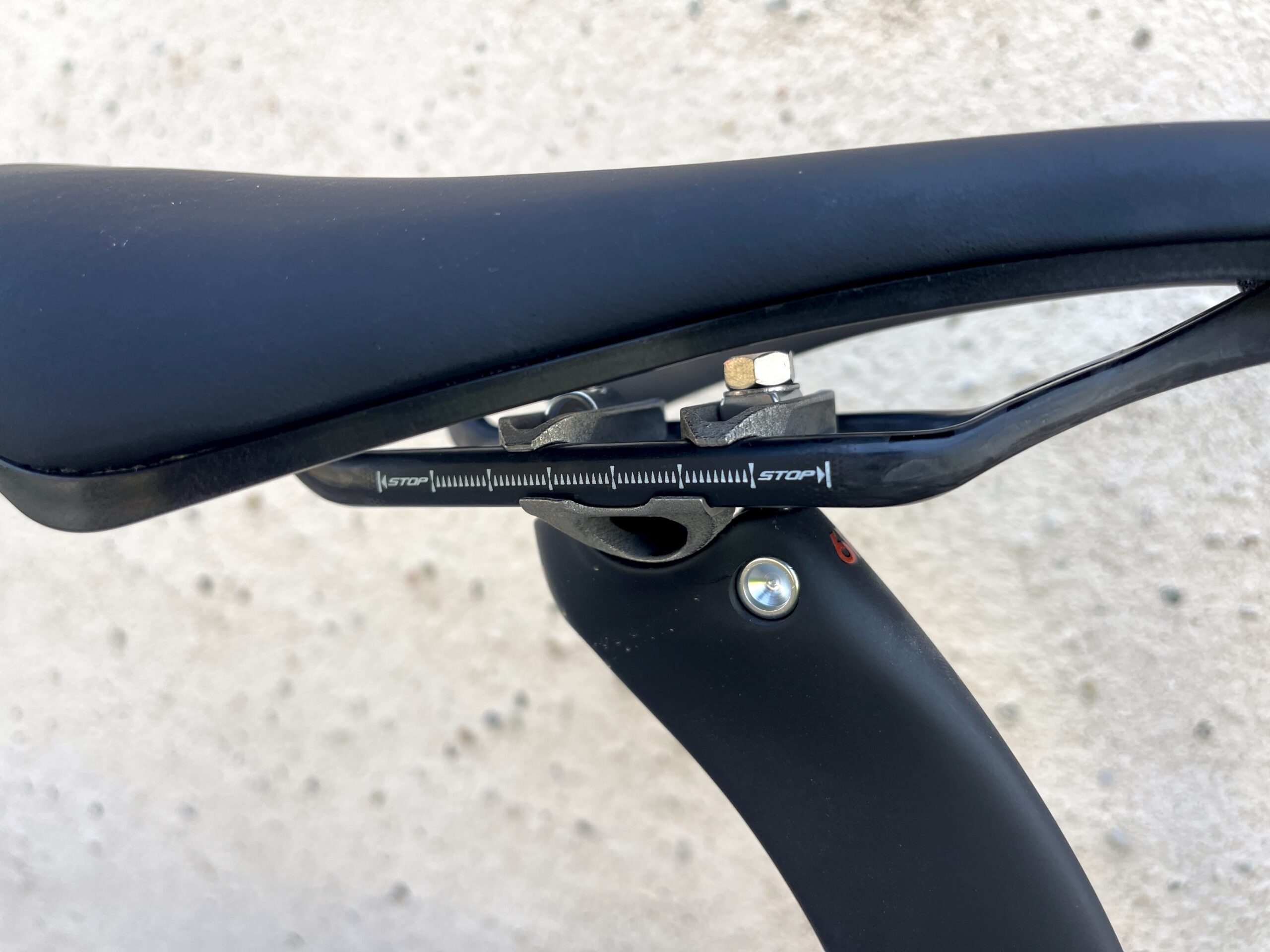

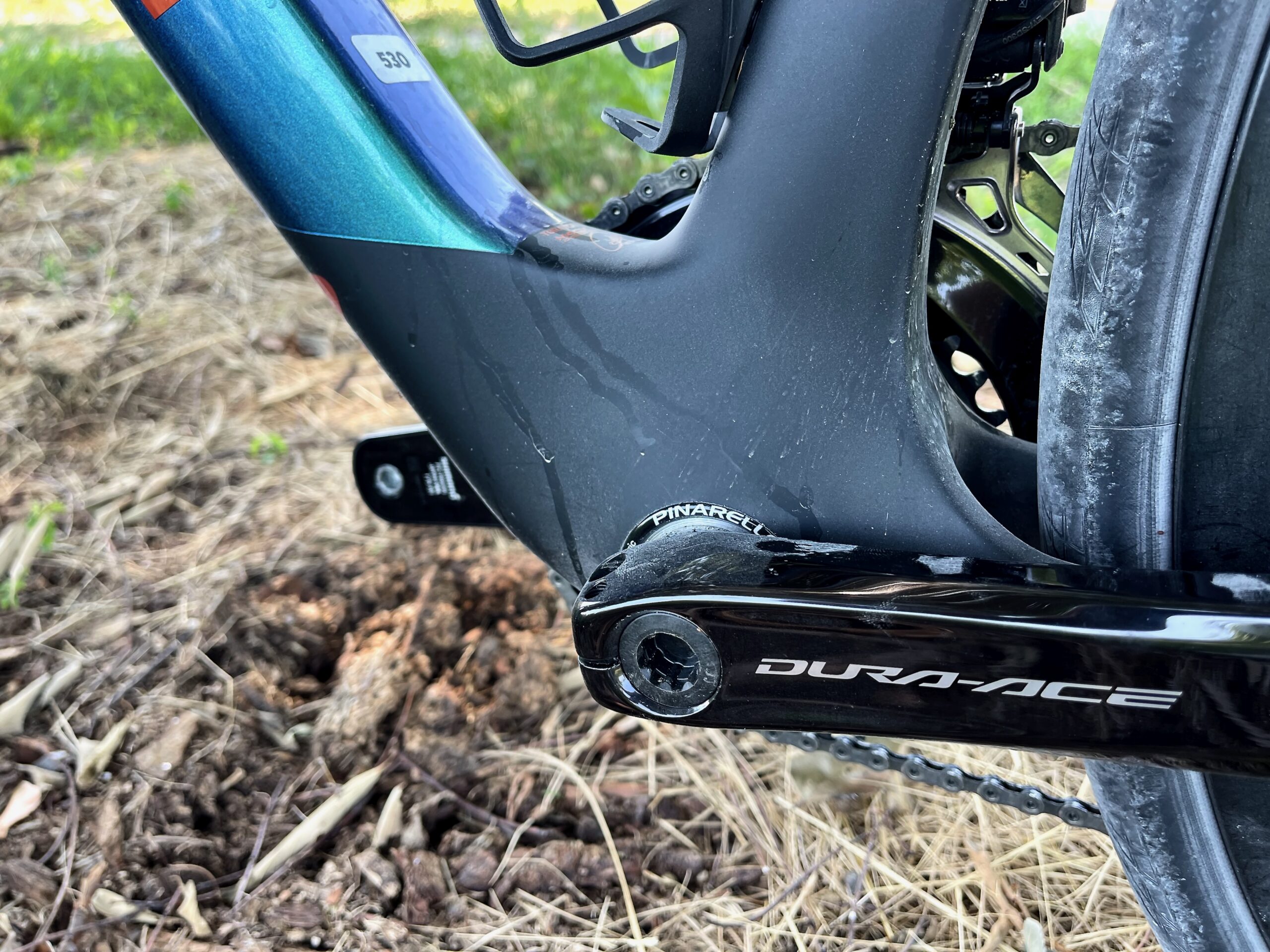

The frame details are very Dogma. You get Pinarello eTiCR internal cable routing, an Italian bottom bracket (Pinarello is committed here), the MOST Talon Ultra Fast bar (more on that later), and a dedicated seatpost (18mm setback) with a 3D-printed titanium top seat clamp and bolts.
The dropouts and fork area get cleaned up as well. Pinarello says the front end is closed off to improve aerodynamic efficiency, and the new dual-mount system adds compatibility with SRAM UDH.
Talk Geometery To Me

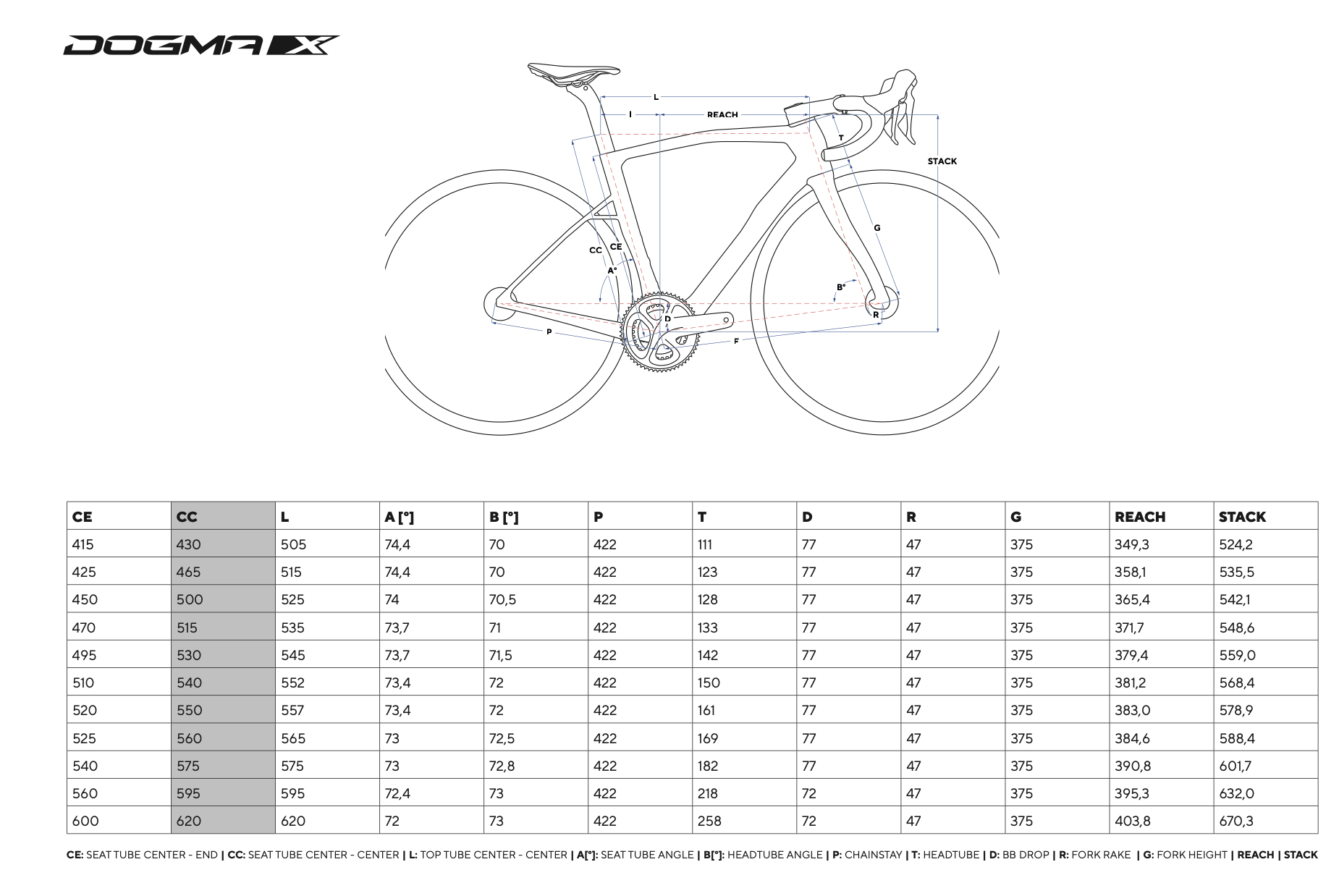

The geometry remains performance-endurance, with the new Dogma X arriving in a staggering 11 sizes, from 430 through 620. Across the range, chainstay length is 422mm, fork rake is 47mm, and fork height is 375mm. This will give the bike a consistent feel across the range, rather than a “designed around this size” kinda feel.
Overall, the geometry is practical. On paper, the Dogma X looks like a bike that you don’t need to practice your mobility daily to ride. The grading of sizes has a natural growth, but the frame still has that Pinarello look, very elegant, without choosing performance over style.

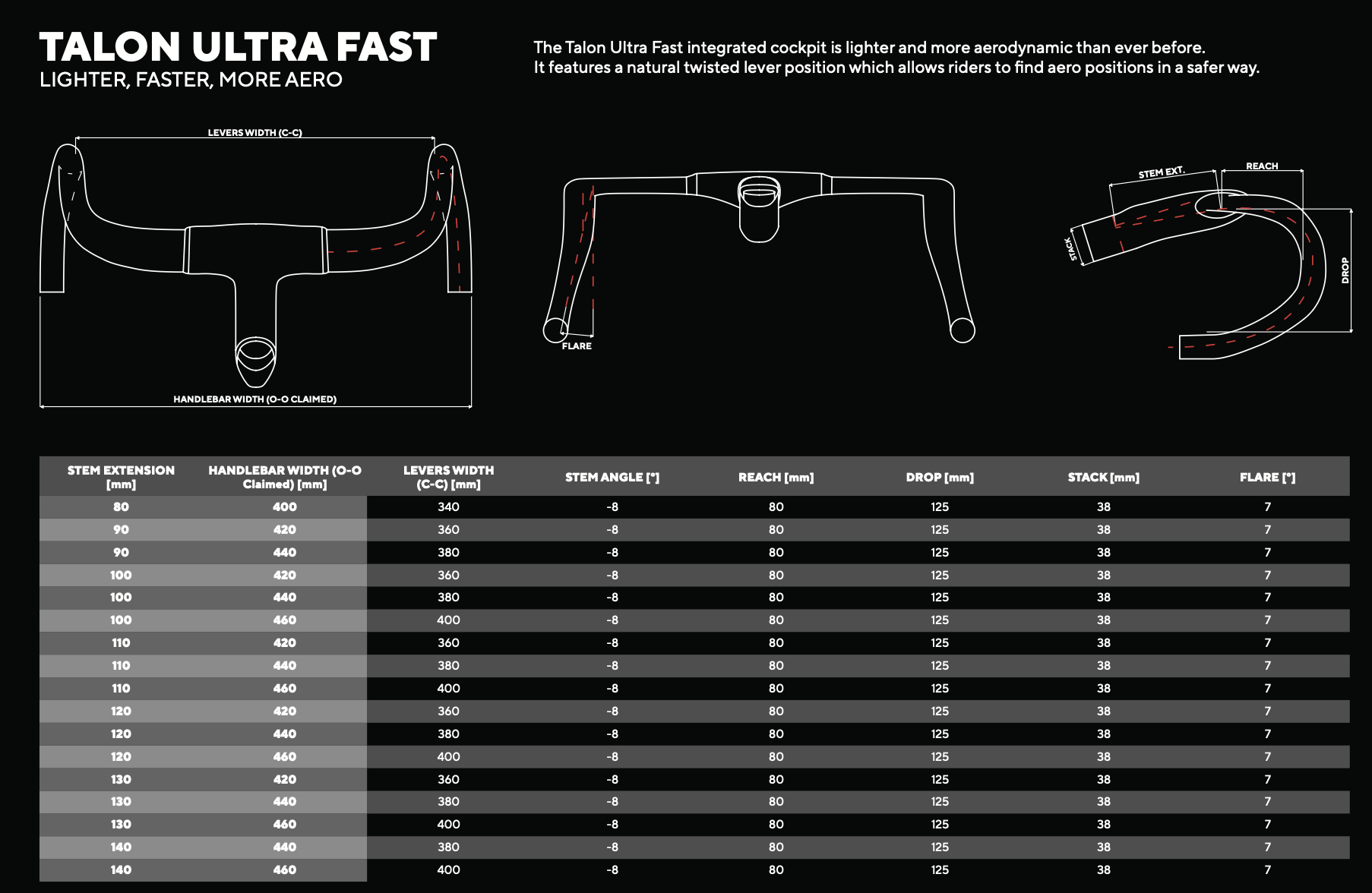

MOST Ultra Fast Bars
Pinarello also gives the Dogma X the MOST Talon Ultra Fast integrated cockpit. This is the same bar you’ll see on the top-end road-spec’d Dogma. The MOST Talon Ultra Fast is lighter and more aerodynamic than the last version. My favortie bit is the twisted lever position, its a nice feature to help riders find a narrower, more aero hand position while keeping the lever position under control.
All versions use an 80mm reach, 125mm drop, 38mm stack, 7-degree flare, and a -8-degree stem angle. Stem lengths range from 80mm through 140mm, with claimed outside-to-outside bar widths from 400 to 460mm and lever widths from 340 to 400mm depending on size.
What Does Fausto Pinarello Think?
”The new DOGMA X is the ultimate all-rounder. Like the DOGMA F, it delivers exceptional reactivity, stiffness, and acceleration, but with a carbon layup and design optimized for everyday road surfaces. It’s a bike built for riders who understand that true performance is measured by the ability to sustain their position and power across a range of distances and terrain.
Will we see riders on the Dogma X in the classics? Fausto thinks so, and feels that the new platform has a lot to offer the World Tour teams. After riding it, we can see why.
Pinarello Dogma X Builds
It’s choose-your-own-adventure with the Dogma X; Shimano, SRAM, or Campy. Each is packed with a top-of-the-line kit and all the bits you usually buy aftermarket.
Shimano Build
- Groupset: Shimano Dura-Ace Di2 2×12
- Power Meter: Shimano Dura-Ace Di2 PM
- Wheels: Princeton Grit 4540 Evolution
- Brake Rotors: 160mm front, 140mm rear
- Chainrings: 50/34, Cassette: 11-30
SRAM Build
- Groupset: SRAM Red AXS 2×12
- Power Meter: SRAM Red eTap AXS PM
- Wheels: Princeton Grit 4540 Evolution
- Brake Rotors: 160mm front, 140mm rear
- Chainrings: 48/35, Cassette: 10-33
Campagnolo Build
- Groupset: Campagnolo Super Record 13
- Wheels: Campagnolo Bora Ultra WTO 45
- Brake Rotors: 160mm front, 140mm rear
- Chainrings: 48/32, Cassette: 11-32
The Pinarello Paint Job
Colors are properly Pinarello; each one has a draw and personality, but my personal favorite is the Jade Eclipse.

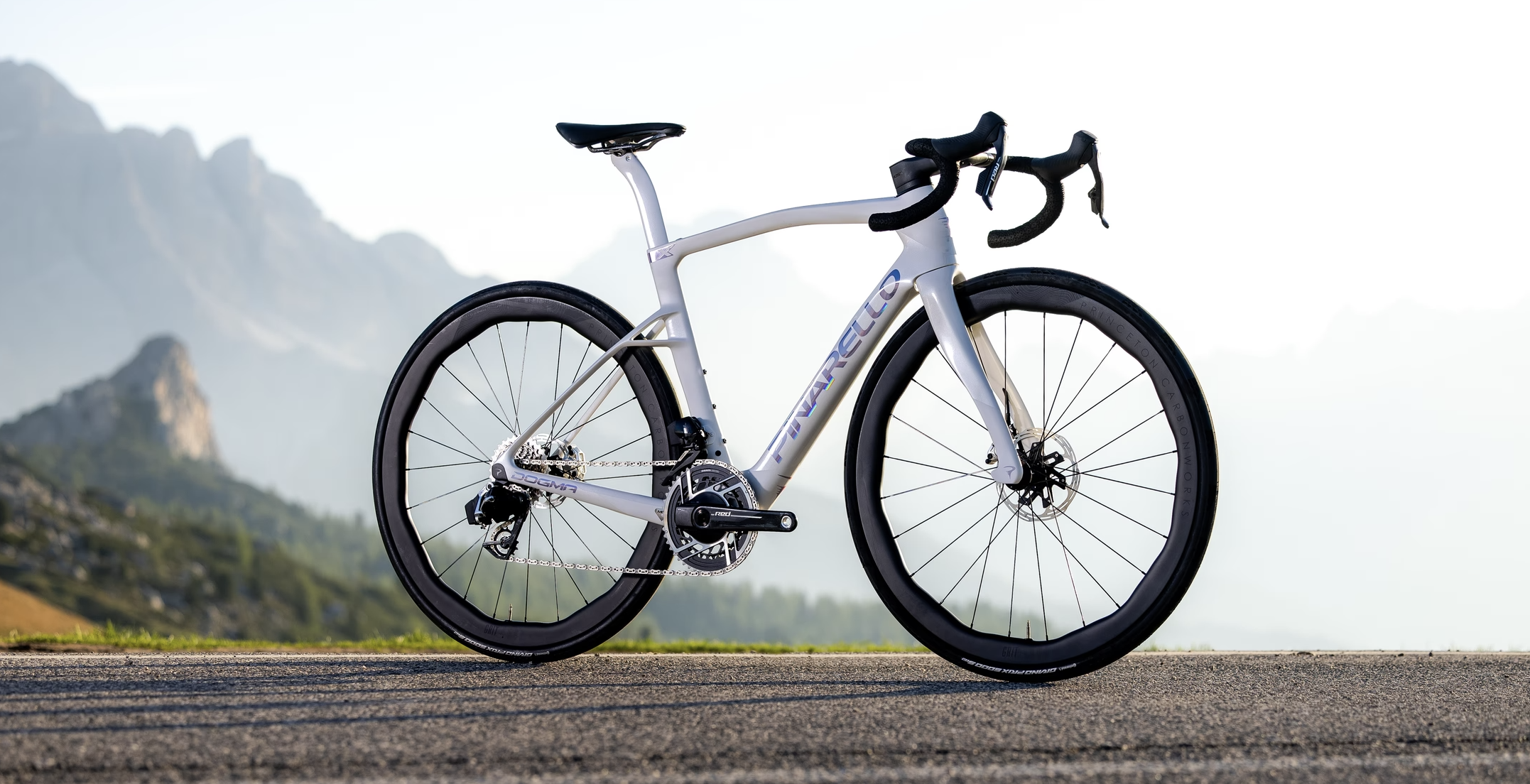

The Dogma X is available in: Moonlight Frost, Jade Eclipse, Etna Lucente, Aqua Veil. Some versions are available only as complete bikes, and the Aqua Veil build will use Princeton Grit 4540 Evolution wheels.
Pinarello Dogma X Pricing
- Frame only RRP €6,700 | $7,250 | £5,500 | ZAR 134.000 | 6.550 CHF
- Full build options from RRP €14,900 | $15,750 | £12,500 | ZAR 298.000 | 14.600 CHF
